PRODUCT DESIGN
APPLICABLE STANDARD
:
IS 694:2010
CONDUCTOR
:
THE CONDUCTORS ARE SOLID 99.97 % BRIGHT ELECTROLYTIC GRADE ALUMINUM WITH MORE THAN 100% CONDUCTIVITY
INSULATION PVC
:
THE CONDUCTORS ARE INSULATED WITH SPECIALLY FORMULATED PVC COMPOUND WITH A HIGH INSULATION RESISTANCE VALUE.
THE INSULATION PROCESS IS CARRIED OUT ON MODERN HIGH SPEED EXTRUSION LINES, WHICH ENSURES HIGH ACCURACY AND CONSISTENCY IN PERFORMANCE.
THE INSULATION PROCESS IS CARRIED OUT ON MODERN HIGH SPEED EXTRUSION LINES, WHICH ENSURES HIGH ACCURACY AND CONSISTENCY IN PERFORMANCE.
SHEATH PVC
:
THE OUTER SHEATH OF THE CABLE IS MADE FROM A SPECIAL GRADE OF ABRASION RESISTANT PVC COMPOUND IMPERVIOUS TO WATER, GREASE, OIL ETC.
OPERATING TEMPERATURE RANGE:
:
TEMP -15°C TO MAX. + 70°C / + 85°C
COLOUR
:
BLACK, GRAY (AND ALSO OTHER COLOUR REQUEST ON CUSTOMER)
PACKING
:
500M & 1000M. (+/-5%) HIGHER LENGTH AVAILABLE ON REQUEST.
MARKING
:
THE CABLES ARE PRINTED WITH GENERIC MARKING “3 & 4 CORE ROUND CABLES”
APPLICATION
:

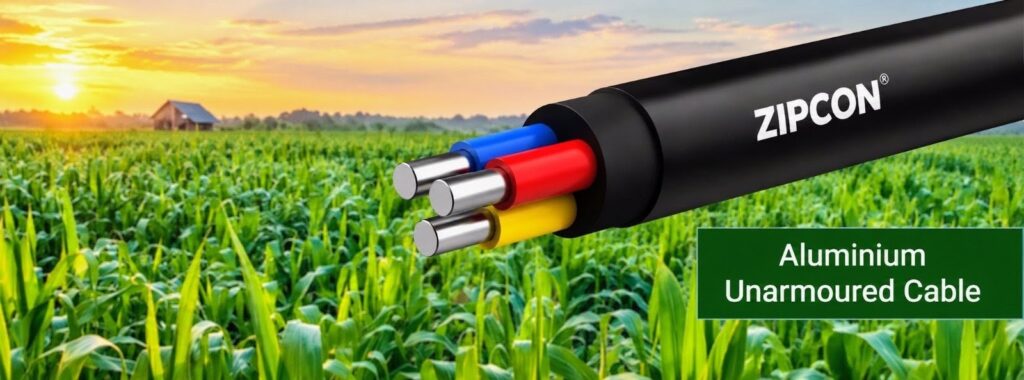

PVC INSULATED AND SHEATHED ROUND ALUMINIUM UNARMOURED CABLES ARE LAID ON GROUND FOR CONNECTION PURPOSES. THE SHEATH IS DESIGNED TO RESIST TOUGH AND DIFFICULT CONDITION OF USAGE, EXCELLENT RESISTANCE TO WATER, CONDITIONALLY RESISTANT TO OIL AND GREASE.
FEATURE
:
– MANUFACTURED FROM PURE ALUMINUM CONDUCTORS AND HENCE, OFFER LOW CONDUCTOR RESISTANCE.
– OUTER SHEATH CONSISTS OF HIGHLY ABRASION RESISTANT PVC COMPOUND IMPERVIOUS TO GREASE, OIL AND WATER ETC.
– VERY GOOD INSULATION PROPERTIES WHEN SUBMERGED IN WATER.
– EXCELLENT MECHANICAL AND ELECTRICAL PROPERTIES.
– PROGRESSIVE SEQUENTIAL LENGTH MARKING ON EVERY METER.
– OUTER SHEATH CONSISTS OF HIGHLY ABRASION RESISTANT PVC COMPOUND IMPERVIOUS TO GREASE, OIL AND WATER ETC.
– VERY GOOD INSULATION PROPERTIES WHEN SUBMERGED IN WATER.
– EXCELLENT MECHANICAL AND ELECTRICAL PROPERTIES.
– PROGRESSIVE SEQUENTIAL LENGTH MARKING ON EVERY METER.
ISO CERTIFICATION
:
ISO 9001:2015, ISO 45001:2018, ISO 14001: 2015, CE, RoHS
PRODUCT CERTIFICATION
:
IS 694:2010 IS 7098 P-1 TUV RHEINLAND CERTIFICATE No. R 60160877
TECHNICAL DATA
| Conductor | PVC Insulation | Approx. Overall Dimensions of Cable |
Conductor Resistance at 20°C (max) |
Current rating at 40°C |
|||
|---|---|---|---|---|---|---|---|
| Nominal Area in |
Nos. & Dia. of wire |
Nominal Thickness |
Nominal Core Dia. |
3 Core | 4 Core | ||
| (T x W) Thickness x Width |
(T x W) Thickness x Width |
||||||
| Sq. mm. | Nos./mm | Mm | mm | mm | mm | Ω/km | Amps. |
| 4 | 1/2.25 | 0.8 | 3.8 | 11.4 | 13 | 7.41 | 23 |
| 6 | 1/2.76 | 0.8 | 4.5 | 12.8 | 14 | 4.61 | 30 |
| 10 | 1/3.57 | 1 | 5.5 | 14.4 | 17 | 3.08 | 40 |
| 16 | 1/4.50 | 1.1 | 6.7 | 17.6 | 21 | 1.91 | 51 |
| 25 | 1/5.65 | 1.2 | 8.1 | 20.5 | 23 | 1.20 | 70 |
| 35 | 1/6.68 | 1.2 | 9.4 | 23.75 | 27.30 | 0.86 | 86 |
NOTE:
- THE DIAMETER MENTIONED IN THE TABLE ARE APPROXIMATE AND NOMINAL, HOWEVER THEY SHALL MEET THE REQUIREMENTS OF CONDUCTOR RESISTANCE AS PERSTANDARDS. IS 8130
- THE ABOVE DATA IS INDICATIVE AND MAY BE REVISED WITHOUT PRIOR INFORMATION. ZIPCON CABLES WILL NOT BE LIABLE FOR ANY DAMAGES ARISING OUT OF INCORRECTAPPLICATION.
